產品說明

主要特征

技術指標

適用行業

資源下載

datalogic得利捷 Matrix 410N是一種工業2D影像式掃描器，用于材料處理和物流環境中的可追溯性應用。方便操作，避免條碼錯漏，提升條碼防重性，條碼防錯性。

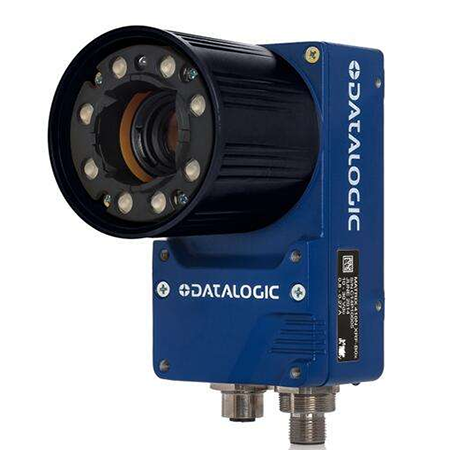

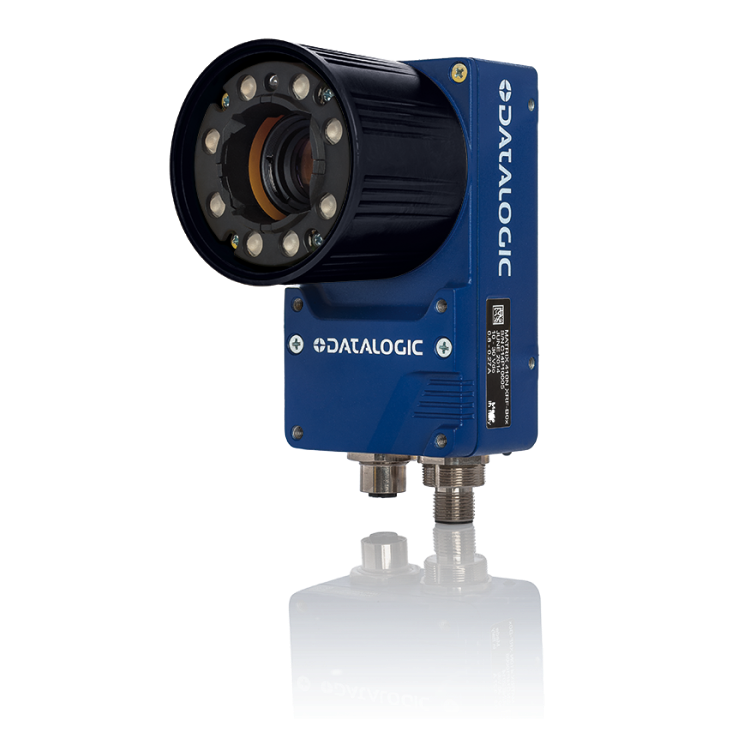

得力捷Datalogic Matrix 410N概述

Matrix 410N＆trade; 是一種工業2D影像式掃描器，用于材料處理和物流環境中的可追溯性應用。

Matrix 410N配備一個超快速影像傳感器，掃描速度2.0 MPixels，幀速率45 fps。

嵌入式以太網連接，包括標準通信服務(TCP/IP, HTTP, FTP)和最常見的工業現場總線，如PROFINET IO, ETHERNET/IP, MODBUS TCP。

Matrix 410N具備高度靈活性，可輕松配置為單個設備讀取站或在多個設備中進行布局，以掃描更大的區域或多個側面。

Matrix 410N具備影像保存功能，以便于對讀取結果進行復查(作為無讀取)。最多可以儲存3.000個影像，或傳輸到外部FTP客戶端。

Matrix 410N使用方便，DL.CODE軟件支持圖形設置，并支持在線監控功能，包括實況圖像顯示、讀數統計和診斷。

嵌入式激光瞄準器和專利綠點 - 投射到掃描區域 - 使用戶可以迅速確定掃描區域，并且，在沒有任何外部附件或軟件情況下非常容易確認讀取結果。

點擊下圖得利捷410N詳細情況

得利捷410N 500系列遠距離掃碼大約1米距離

datalogic得力捷Matrix 410?產品訂貨號

937401031MATRIX 410 400-000 SXGA-BS-CM-SER-STD

937401032MATRIX 410 400-010 SXGA-BS-CM-ETH-STD

937401033MATRIX 410 600-000 UXGA-BS-CM-SER-STD

937401034MATRIX 410 600-010 UXGA-BS-CM-ETH-STD

MATRIX 410N 500-010 1.3MP-60FPS-ETH	937401082
MATRIX 410N 700-010 2.0MP-45FPS-ETH	937401083
MATRIX 410N 712-510 LNS12-RED ST-0.30	937401097
MATRIX 410N 713-210 LNS16-RED ST-0.30	937401098
MATRIX 410N 724-110 LN25-RED ST PT-0.33	937401099
MATRIX 410N 734-110 LNS25-BLUE HP-0.33	937401091
MATRIX 410N 734-210 LNS25-BLUE HP-0.25	937401092
MATRIX 410N 734-710 LNS25-BLUE HP-0.38	937401090
MATRIX 410N 744-110 LNS25-RED HP-0.33	937401101
MATRIX 410N 744-210 LNS25-RED HP-0.25	937401102
MATRIX 410N 744-710 LNS25-RED HP-0.38	937401100
MATRIX 410N 754-110 LNS25-BLUE VHP-0.33	937401094
MATRIX 410N 754-210 LNS25-BLUE VHP-0.25	937401095
MATRIX 410N 754-610 LNS25-BLUE VHP-0.35	937401107
MATRIX 410N 754-710 LNS25-BLUE VHP-0.38	937401093
MATRIX 410N 755-210 LNS35-BLUE VHP-0.25	937401096
MATRIX 410N 764-110 LNS25-WHT VHP-0.33	937401104
MATRIX 410N 764-210 LNS25-WHT VHP-0.25	937401105
MATRIX 410N 764-710 LNS25-WHT VHP-0.38	937401103
MATRIX 410N XRF-B0x SPARE UNIT-REPLMNT	937400038
MATRIX 410N XRF-B1x SPARE UNIT-REPLMNT	937400039
MATRIX 410N XRF-H0x SPARE UNIT-REPLMNT	937400040
MATRIX 410N XRF-H1x SPARE UNIT-REPLMNT	937400041
MATRIX 410N XRF-H2x SPARE UNIT-REPLMNT	937400042

艾韋迅IVYSUN是得利捷Datalogic掃描器的中國區核心經銷商，貨源充足、確保正品。專業的得利捷Datalogic掃描器產品技術服務團隊，確保您采購使用無后顧之憂！購買國際品牌條碼掃描器，請認準技術型服務商：艾韋迅IVYSUN (http://www.xfkjz.com)。

得力捷Datalogic Matrix 410N特性

專利超快速頻閃照明,為操作員提供穩定的讀取效果

用于分揀應用小物體間隔的專利 Pending Backtrack2D技術具有公共協議支持的嵌入式以太網連接:PRoF|NETOETHERNET/IP TCP/IP, FTP, HTTP

板載圖像存儲器最多可以儲存3000個影像(縮放外部連接盒,帶參數備份內存和顯示屏

通過簡單的配置,即可設置單個讀取點或將多個設備集成在集群中

激光指向系統,良好的讀取綠點,聚焦瞄準系統

帶有圖像存檔數據庫的遠程基于Web的 Websentinel監控軟件

用于物流環境中的可追溯性應用

得利捷Matrix 410N? 高性能工業2D影像式掃描器配件

以下附件可用于簡化安裝和優化產品性能

產品訂貨號	產品描述
Focusing Lenses
93ACC1793	LNS-1006 6MM C-MOUNT LENS
93ACC1794	LNS-1109 9MM C-MOUNT LENS
93ACC1795	LNS-1112 12,5MM C-MOUNT LENS
93ACC1796	LNS-1116 16MM C-MOUNT LENS
93ACC1797	LNS-1125 25MM C-MOUNT LENS
93ACC1798	LNS-1135 35MM C-MOUNT LENS
93ACC1799	LNS-1150 50MM C-MOUNT LENS
Internal Lighting modules
93A401019	LT-001 INTERNAL LT RED NARROW ANGLE
93A401020	LT-002 INTERNAL LT RED WIDE ANGLE
93A401021	LT-003 INTERNAL LT WHITE NARROW ANGLE
93A401023	LT-005 INTERNAL LT BLUE FOR DPM
93A401022	LT-004 INTERNAL LT WHITE WIDE ANGLE
93A401024	LT-006 INTERNAL LT RED SUPERNARROW ANGLE
93A401030	LT-007 INTERNL LT RED SUPERNAR+LASER P
93A401026	LT-010 HI POWER LT BLUE SUPERNARROW
93A400031	LT-011 HI POWER LT RED SUPERNARROW
Main cables
93A051346	CAB-ETH-M01 M12-IP67 ETHERNET CABLE (1M)
93A051347	CAB-ETH-M03 M12-IP67 ETHERNET CABLE (3M)
93A051348	CAB-ETH-M05 M12-IP67 ETHERNET CABLE (5M)
93A050058	CAB-DS01-S M12-IP67 TO CBX 1M
93A050059	CAB-DS03-S M12-IP67 TO CBX 3M
93A050060	CAB-DS05-S M12-IP67 TO CBX 5M
93A050084	CAB-MLP-05 MULTI LIGHTING POWER 5M
CBX Connection Boxes and related accessories
93A301067	CBX100 CONNECTION BOX COMPACT
93A301068	CBX500 CONNECTION BOX MODULAR
93A301069	CBX100LT CONN. BOX COMPACT LOW TEMP.
93A301077	CBX800 GATEWAY
93A301076	CBX100 All in One
93A301070	CBX500 Profibus All-in-one; BM100+BM300
93A301071	CBX500 Ethernet All-in-one; BM100+BM520
93A301072	CBX500 Devicenet All-in-one; BM100+BM400
93ACC1821	BA100 DIN RAIL ADAPTERS
93ACC1822	BA200 BOSCH ADAPTERS
93ACC1877	BA300 M12 3P F. PANEL CONN. (SERVICE)
93ACC1853	BA400 M12 3P M. PANEL CONN. (EXT.POWER)
93ACC1854	BA500 M12 4P F. PANEL CONN. (TRIGGER)
93ACC1855	BA600 M12 5P F. PANEL CONN. (ID-NET OUT)
93ACC1856	BA700 M12 5P M. PANEL CONN. (ID-NET IN)
93ACC1847	BA900 TWO CABLE GLANDS PANEL
93ACC1827	ADP-FF1 GENDER CHANGER 25P F/F (5PCS)
93ACC1828	ADP-MM1 GENDER CHANGER 25P M/M (5PCS)
Optional Modules for CBX500
93ACC1808	BM100 BACKUP MODULE
93ACC1809	BM150 DISPLAY MODULE
93ACC1851	BM200 ETHERNET TCP/IP MODULE
93ACC1852	BM210 ETHERNET TCP/IP IP65 MODULE
93ACC1810	BM300 PROFIBUS MODULE
93ACC1811	BM310 PROFIBUS IP65 MODULE
93ACC1814	BM400 DEVICENET IP65 MODULE
93ACC1812	BM500 ETHERNET MODULE
93ACC1813	BM510 ETHERNET IP65 MODULE
93ACC1840	BM520 ETHERNET IP54 MODULE
93ACC1815	BM600 CAN OPEN MODULE
93ACC1816	BM700 PROFINET MODULE
93ACC1845	BM1100 CC-LINK MODULE
93ACC1848	BM1200 MODBUS TCP MODULE
93ACC1849	BM1210 MODBUS TCP IP65 MODULE
93ACC0113	BM1300 ETHERCAT MODULE
Quick Link Connection Modules
93ACC1860	QL100 ID-NET T-CONNECTION
93ACC1868	QL150 ID-NET + SERVICE T-CONNECTION
93ACC1861	QL200 ID-NET + POWER T-CONNECTION
93ACC1862	QL300 STANDARD CONNECTION MODULE
93ACC1864	QL500 CONNECTION MODULE + ETHERNET
93ACC0033	QLM600 PROFIBUS IP65 CONN. MODULE
93ACC0037	QLM500 ETHERNET/IP IP65 CONN. MODULE
93ACC0038	QLM700 PROFINET IP65 CONN. MODULE
Clustering cables
93A051385	CAB-AUX03 M12 3P TO DB9 SERIAL CABLE 3M
93A051381	CAB-PW-EXT M12 POWER EXTENSION CABLE
93ACC1883	FMC300 M12 3P M. CONN. SERVICE
93ACC1884	FMC400 M12 3P F. CONN. POWER
93A051386	CAB-AUX04 15P DSUB TO DB9 SERIAL CABLE
93ACC0040	FMC600 M12 8P M. A-Code QLM-I/O
93A050048	CBL-1480-0.3 M12/5P MALE/FEM. 0.3M IDNET
93A050049	CBL-1480-01 M12/5P MALE/FEMALE 1M IDNET
93A050050	CBL-1480-02 M12/5P MALE/FEMALE 2M IDNET
93A050051	CBL-1480-05 M12/5P MALE/FEMALE 5M IDNET
93A050045	CBL-1487 CONNECTOR M12/5P/FEMALE IDNET
93A050046	CBL-1490 TERM. RESIST. M12/5P/MALE IDNET
93A050052	CBL-1494-02 M12/5P/FEMALE-LEADS 2M IDNET
93A050053	CBL-1494-05 M12/5P/FEMALE-LEADS 5M IDNET
93A050047	CBL-1496 TERM. RESIST. M12/5P/FEM. IDNET
93A050056	CBL-1498-02 M12/5P/MALE-LEADS 2M IDNET
Power Supplies
93ACC0046	PG-120-K01 PWR SUPPLY KIT FOR M450 (EU)
93ACC0047	PG-120-K02 PWR SUPPLY KIT FOR M450 (UK)
93ACC0048	PG-120-K03 PWR SUPPLY KIT FOR M450 (US)
93A050043	CAB-PG-0105 VDC PWR PG120-M450 5M
93ACC1870	CAB-PG-0002 VDC PWR PG120-IDNET 2M
Specialized Optical/Lighting accessories
93ACC1800	FLT-111 IR CUT FILTER (D 27MM)
93ACC1801	FLT-112 IR CUT FILTER (D 25.5MM)
93ACC1802	FLT-121 LINEAR POLARIZER (D 27MM)
93ACC1803	FLT-122 LINEAR POLARIZER (D 25.5MM)
93ACC1858	ESD SAFE LENS COVER MATRIX 400
93ACC1859	PLASTIC WINDOW LENS COVER MATRIX 400
93ACC1729	USX-60 ADJUSTABLE BRACKET
93A401028	LT-700 SINGLE BAR LT – DPM
93ACC0052	BK-21-000 FIX. BRACKET M210 LT-70X
93A401016	LT-510 MINI-DOME LIGHTING SY
93A401017	LT-511 DOME LIGHTING SYSTEM
93A401018	LT-630 FOUR BAR LIGHTING SY
93ACC1790	LTC-630 FOUR BAR LIGHT.SYST
93ACC1789	BK-630 FOUR BAR LIGHT. SYST
93ACC1804	BK-4410 COAXIAL LT BRACKET MATRIX
93ACC1805	BK-4990 GENERIC LT BRACKET MATRIX
93ACC1788	BK-511 DOME/RING LIGHT. SYST
Documentation kit
93ACC0148	SW-DOCS-TEST CHART FOR MATRIX DL.CODE
